YST500 Hydraulic Test Benches Appearance Design Is Beautiful, Non-Standard And Customized

  • 1
  • 2
  • 3

Brand Name : HIGHLAND

Model Number : YST380

Certification : CE

Place of Origin : China Dezhou

MOQ : 1 set

Price : USD 30000-86800/set

Payment Terms : T/T, Western Union

Supply Ability : 1 sets per month

Delivery Time : 30-60 work days

Packaging Details : Plastic film packaging

Pressure : 35mpa

Power source : 380V 50Hz or customized

Flow rate : 380 L/min

Application : Testing pump, motor, valve, cylinder

Power : 90 kw

Warranty : 1 year

Motive force : Electromotor

Medium : Hydraulic oil

National standards : GB/T8104,GB/T8105,GB/T8106,GB/T7936,GB/T 15622

Poduct name : Modular layout of hydraulic test benches for airport mowers

Contact Now

Modular layout of hydraulic test benches for airport mowers

Hydraulic Test Benches product description

The hydraulic test bench is widely used to test the hydraulic pump motor valve cylinder. It can also be used for fault diagnosis of hydraulic system. These products are developed and produced by ourselves, so we can customize them according to the needs of customers.


Hydraulic Test Benches features

The hydraulic pump test bench is designed and manufactured according to the standards of various countries for the delivery test of hydraulic pumps. It can test the dynamic and static performance of hydraulic vane pumps (single pump, double pump, multi pump), gear pump, plunger pump, etc. it is the most important testing equipment for hydraulic pump production and maintenance enterprises

 Technical parameter


 Hydraulic Test Benches Technical parameter
Pressure(mpa)  35mpa / 42mpa
Flow rate(L/min)  380L/min / 450L/min / 500L/min
Power(KW)  75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw
Power Drive Mode  Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery
Speed Range  1000r/min / 0-1500r/min / 0-2500r/min
Load location  Liquid control loading / Proportional loading
Show location  Locale/ Computer (long-distance)
Working Medium  Hydraulic oil
Composition  Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items,  motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data,  printouts
Applicable area  Apply to performance test of the hydraulic components that supported by a host in engineering  machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.

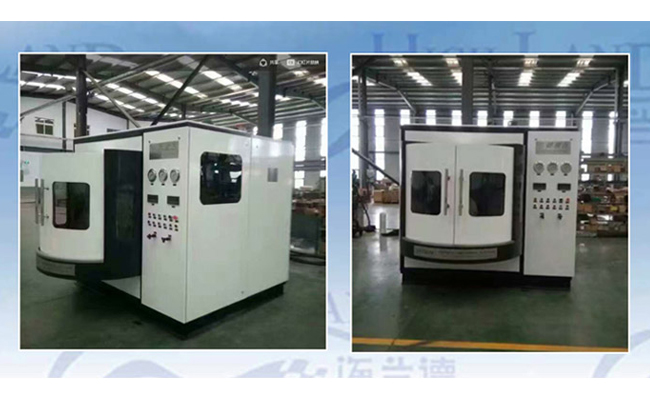

YST500 Hydraulic Test Benches Appearance Design Is Beautiful, Non-Standard And Customized

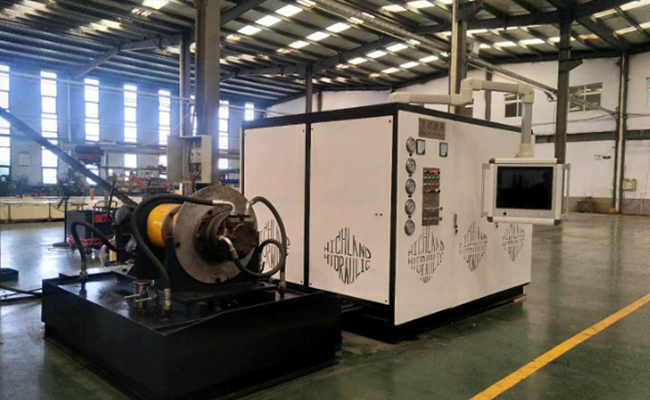

YST500 Hydraulic Test Benches Appearance Design Is Beautiful, Non-Standard And Customized
Hydraulic Test Benches Main Model

● YST-300 Hydraulic Motor Test Tench

● YST-300 Digit Hydraulic Test Bench

●YST-380 Hydraulic Pump Test Tench

● YST-380 Adjustable Hydraulic Comprehensive Test Bench

● YST-380 Digit Hydraulic Comprehensive Test Bench

● YST-500 Hydraulic Comprehensive Test Bench


Hydraulic Test Benches usage

For maintenance enterprises and remanufacturing enterprises of hydraulic components, it is used for fault judgment before maintenance and testing of main performance parameters after maintenance to ensure that the performance indicators of components before installation meet the requirements and avoid repeated assembly and disassembly.

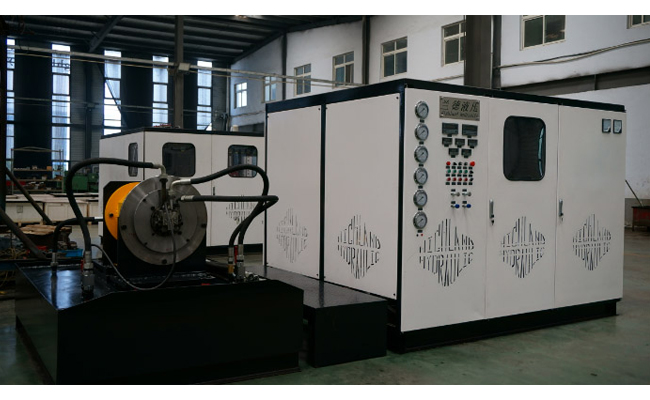

YST500 Hydraulic Test Benches Appearance Design Is Beautiful, Non-Standard And Customized
