Personalized Coal Mine Hydraulic Test Stands 380L/MinHydraulic Test Bed

Product Categories
Shandong Highland Hydraulic Seiko Co., Ltd.
Contact Now

Personalized Coal Mine Hydraulic Test Stands 380L/MinHydraulic Test Bed

  • 1
  • 2
  • 3

Brand Name : HIGHLAND

Model Number : YST-380

Place of Origin : China Dezhou

MOQ : 1 set

Price : USD30000-86800/set

Payment Terms : T/T, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 30-60 working days

Packaging Details : Plastic film packaging

Certification : CE

Power : 90 kw

Brand : HIGHLAND

Pressure : 35 mpa

Uses : Hydraulic pump maintenance Democratic detection

Flow rate : 380 L/min

Alias : Hydraulic Test Stand

Warranty : 1 year

Motive force : Electromotor

Medium : Hydraulic oil

Product Name : Personalized customization of coal mine hydraulic test stand

Contact Now

Personalized customization of coal mine hydraulic test stand



Hydraulic Test Stands Introduction



YST Series Hydraulic Test Stands are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.



Standard Specification Hydraulic Test Stands



YST series Hydraulic Test Stands
YST series hydraulic ram test bench mainly
test hydraulic pumps, test hydraulic motors, hydraulic valves,
hydraulic cylinders, etc.hydraulic ram test bench is a customized
machine.According to your requirements, our engineer will
Provide your best solution for your hydraulic test bench



 Technical parameter



 Hydraulic Test Stands  Technical parameter
Pressure(mpa)  35mpa / 42mpa
Flow rate(L/min)  380L/min / 450L/min / 500L/min
Power(KW)  75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw
Power Drive Mode  Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery
Speed Range  1000r/min / 0-1500r/min / 0-2500r/min
Load location  Liquid control loading / Proportional loading
Show location  Locale/ Computer (long-distance)
Working Medium  Hydraulic oil
Composition  Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items,  motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data,  printouts
Applicable area  Apply to performance test of the hydraulic components that supported by a host in engineering  machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.



Personalized Coal Mine Hydraulic Test Stands 380L/MinHydraulic Test Bed



Advantages



  • HIGHLAND Hydraulic
  • independent research and
  • development team.
  • Has successively obtained
  • dozens of "invention patents"
  • and "utility model patents",
  • Design hydraulic technical
  • solutions according to
  • customer needs.

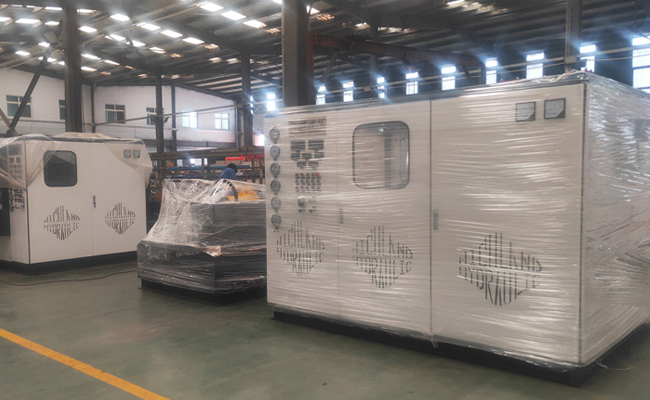

Pictures show



Personalized Coal Mine Hydraulic Test Stands 380L/MinHydraulic Test Bed



Personalized Coal Mine Hydraulic Test Stands 380L/MinHydraulic Test Bed
