Highland PV22 Model 69.8ml/R Displacement Mixer Hydraulic Pumps
Mixer hydraulic pumps based introduction:
Our mixer hydraulic pumps are variable displacement axial flow piston pumps with high performance and high quality. Our hydraulic pumps are mainly used for construction machineries, such as mixer trucks, scrapers, ditchers and bulldozeres etc many machineries. they also can be used for agricultural machineries, such as harvesters, tractors etc.
PV22 Mixer hydraulic pumps performance:
- Axial flow piston pumps with very long service life.
- Axial flow piston pumps with Low operating noise.
- Flow direction changes when the swash plate is moved through the neutral position
- Piston pumps have strong load capacity of axial drive shaft.
- Control lever with short response times.
- Axial flow piston pumps swash plate design.
PV22 hydraulic pumps technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 |
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | PV series hydraulic pump hydraulic oil emptying | kg | 45 | 53 | 63 | 78 |
| MF series hydraulic motor hydraulic oil emptying | kg | 30 | 34 | 40 | 47 |
Highland service for mixer hydraulic pump:
Quick response within 24 hours.
Provide technical guidance.
Help customer solve hydraulic confusion.
Excellent after-sale service.
100% factory testing before shipment.
Preferential factory price, short delivery time.
FAQ for mixer hydraulic pumps:
1. Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2. What is your payment term ?
We accept T/T, Western Union etc.
3. How long is the validity of quotation ?
Generally, our price is valid within 7 working days from the date of quotation.The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
4. What is your delivery time ?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
Tags: mixer hydraulic pump, PV22 hydraulic pumps, 69.8ml/r displacement hydraulic pumps
Product Tags:
|
|

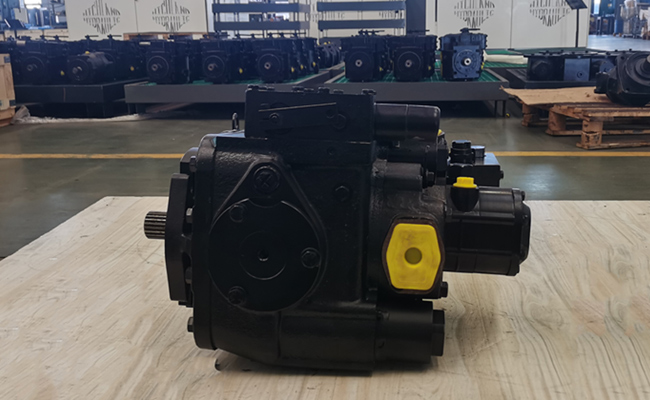

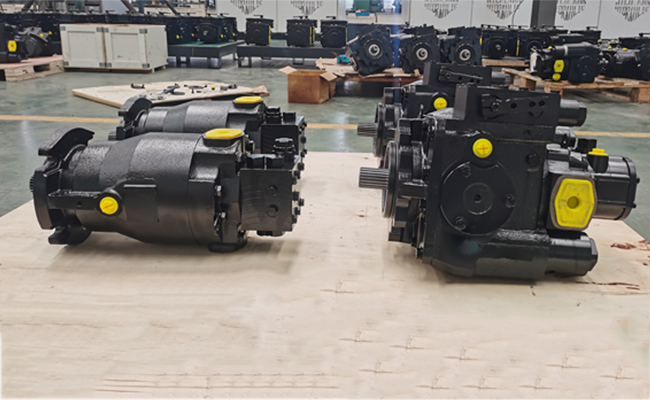

Pv22 Model Mixer Hydraulic Pumps 69.8ml/R Displacement Images
|
